Constant source impact type mobile crushing station parameters:

Model	Vibrating screen model	Counterattack broken model	Belt machine specifications	Tire configuration	Generator	Processing capacity (t)	Power （kw）	Dimensions （mm）	Weight t）
3YPF1548	3YZS1548	PF1010	B500*7M	Combined with two axes	Optional	50-250	70-90	1250028006000	42
3YPF1848	3YZS1848	PF1210	B650*7M	Combined with two axes	Optional	70-300	128.5-150.5	1250030006500	46
3YPF1860	3YZS1860	PF1214	B650*8M	Combined three axes	Optional	90-400	154-190	1350030006500	51
3YPF2160	3YZS2160	PF1315	B800*8M	Combined three axes	Optional	120-450	210-297	1400032006500	57

Note: Parameters are subject to change without prior notice, please contact us.

Introduction to the counter-moving mobile crushing station:

The counter-attack mobile crushing station produced by Jiangsu Fenix ??Machinery Co., Ltd. is mainly used for chemical processing, metallurgy, building materials, hydropower and other materials processing occasions where relocation operations are often required. The operation of mobile materials such as highways, railways, and hydropower projects is particularly applicable. Various configurations are adopted depending on the type and size of the raw materials to be processed and the requirements of the finished materials.

Counterattack mobile crushing station principle:

The working principle of the counter-moving mobile crushing station is that when the mobile breaks and moves, the traction frame is provided by the trailer, and the tire is assisted by the tire of the frame itself. When installing, rely on external power, control the hydraulic cylinder and other actions through the hydraulic electronic control system to complete the equipment installation. When working, rely on external power to drive the main machine and auxiliary equipment motor, drive the equipment to work, the material from the silo or belt conveyor to enter the counter-breaking host to break or sieve, and then discharge through the belt conveyor.

Counterattack mobile crushing station features:

1. The installation form of the integrated unit equipment eliminates the complicated installation of the infrastructure of the separate components and reduces the material and working hours. The reasonable and compact space layout of the unit improves the flexibility of the station.

2. The mobile crushing station has a high vehicle ground, the vehicle body width is smaller than the operating semi-trailer, and the turning radius is small, which is convenient for ordinary road driving, and is more convenient for driving in the rugged road environment of the broken field. Save time for quick entry to the site. It is more conducive to stationing in a reasonable construction area, providing more flexible space and reasonable layout configuration for the overall crushing process.

3. The mobile crushing station can be used for single-unit independent operation for the coarse crushing and fine crushing screening system, or it can be flexibly composed of the system configuration unit. The side of the unloading hopper provides the flexibility of various configurations for the screening material conveying mode. In addition to supplying power to the unit, the diesel generator in the integrated unit configuration can also be configured to provide unit power supply to the process system in a targeted manner, and reliable performance maintenance. Convenience.

4. The integrated series mobile crushing station can be used independently, or it can provide more flexible process configuration for the material type and product requirements of the customer in the process, and meet various requirements such as mobile crushing and moving screening. Organization and logistics transfer are more direct and effective, and the cost is maximized.

5. The mobile crushing station can crush the material on the first line, eliminating the intermediate link of the material being transported away from the site and greatly reducing the transportation cost of the material. In addition, the extended unit can directly send the broken materials into the transfer car bin and turn off the site.

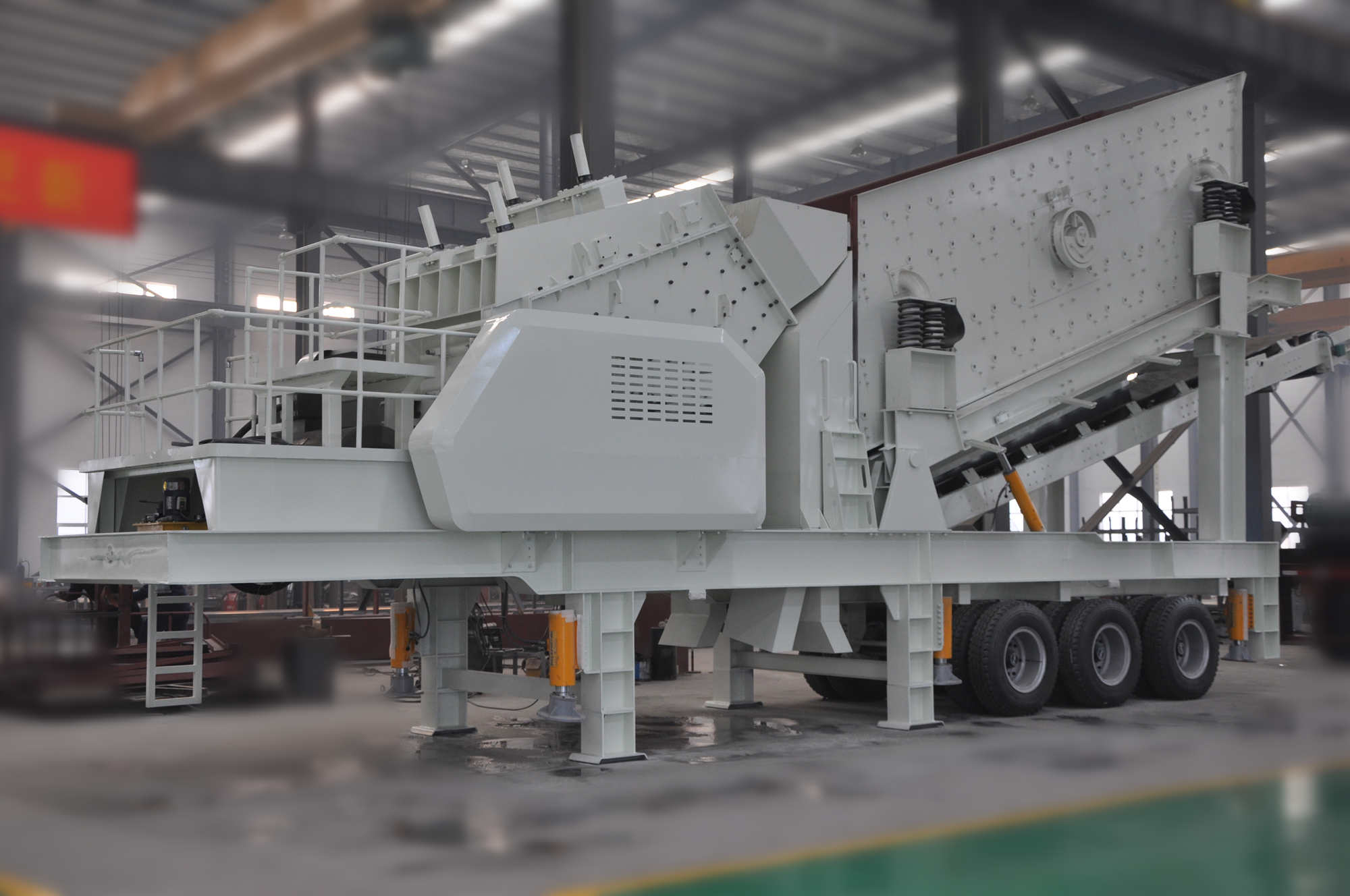

Counterattack mobile crushing station picture:
