Jaw Crusher_Jiangsu Phoenix Contact Machinery Co., Ltd

Product electronic sample: https://www.yunzhan365.com/bookcase/sbhc/

Jaw crusher parameters:

Model	Dimension of inlet and outlet (mm)	Maximum feed (mm)	Adjustment range of discharge outlet (mm)	Capacity (t/h)	Power (kw)	Weight (t)
PE-150*250	150*250	130	10-40	0.96-4.8	5.5	0.81
PE-250*400	250*400	210	20-80	5-21	15	2.8
PE-400*600	400*600	340	40-100	16-64	30	6.5
PE-500*750	500*750	425	50-100	45-100	55	10.3
PE-600*900	600*900	500	65-160	48-120	55/75	15.5
PE-750*1060	750*1060	630	80-140	115-208	110	27.02
PE-800*1060	800*1060	650	100-200	136-228	110	28.4
PE-870*1060	870*1060	670	200-260	290-384	110	30.5
PE-900*1200	900*1200	750	100-200	144-304	132	50
PE-900*1200II	900*1200II	750	100-200	144-304	132	45.8
PE-1000*1200	1000*1200	850	195-265	315-342	132	50.6
PE-1200*1500	1200*1500	950	150*350	300-800	220	83
PE-1500*1800	1500*1800	1200	220-350	450-1000	355	122
PEX-150*750	150*750	120	18-48	8-25.6	15	3.5
PEX-250*1000	250*1000	210	25-60	16-51.2	37/30	6.5
PEX-250*1200	250*1200	210	25-60	20-60	37	7.7
PEX-300*1300	300*1300	250	20-90	20-104	75	11

Note: If the parameters are updated, please contact us without further notice.

Jaw Crusher Introduction:

The jaw crusher produced by Jiangsu Phoenix ??Machinery Co., Ltd. is mainly used for medium-sized crushing of various ores and bulk materials. It can crush materials with compressive strength of not more than 320Mpa, which are divided into coarse and fine broken. The series of products are complete in specifications, and the feed size is 125mm ~ 1200mm, which is the primary crushing equipment.

Jaw Crusher principle:

No matter what series of jaw crushers, the working mode is driven extrusion type, and the working principle is basically the same: the motor drives the belt and the pulley, and the moving shaft moves up and down through the eccentric shaft. When the moving jaw rises, the bracket is moved. The angle between the turns becomes larger, so that the movable jaw is approached to the fixed jaw. At the same time, the material is squeezed to achieve the purpose of crushing; when the moving down, the angle between the bracket and the moving jaw becomes smaller, and the moving jaw is smaller. Under the action of the tie rod and the spring, the fixed raft is left, and the broken material is discharged from the lower mouth of the crushing chamber. As the motor rotates continuously, the crushing maneuvering cycle motion crushes and discharges, achieving mass production.

Jaw Crusher Features:

1. The deep cavity is broken and the crushing ratio is large;

2. The wearing parts have long service life and wear resistance;

3. Energy saving and environmental protection, less dust and less noise;

4. The manufacturing process is precise, and a heat treatment process is adopted for core components such as spindles, wearing parts and bearings;

5. Large-scale smashing and strict use of welding frame to ensure reliable use of products;

6. The product has lifting hooks for easy lifting.

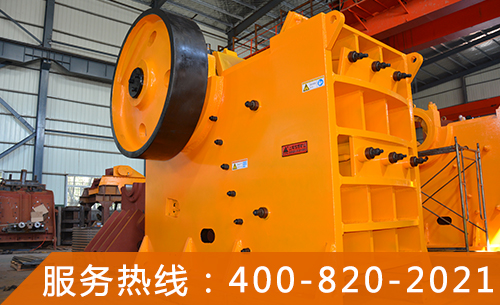

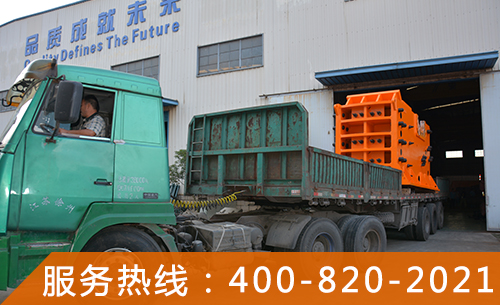

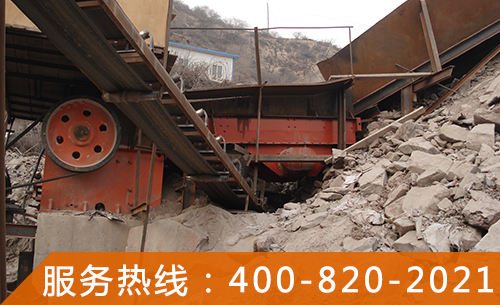

Jaw crusher factory picture:
